· 适用螺栓：M20-M115
· 最大工作压力：63MPa
特点

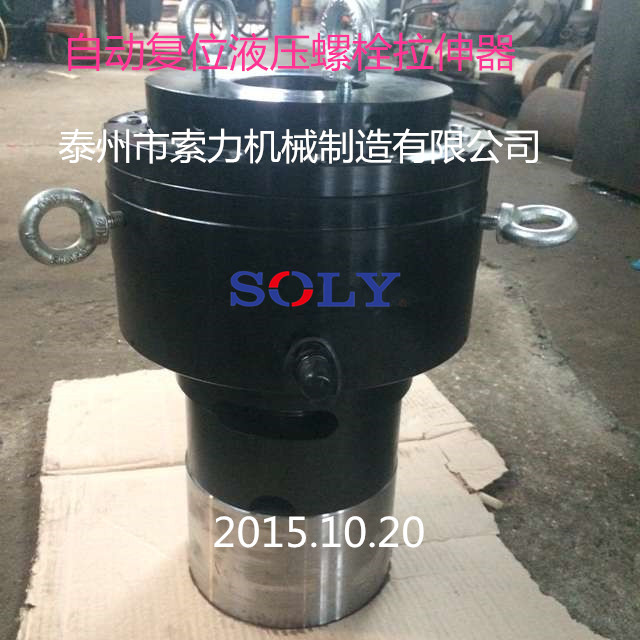

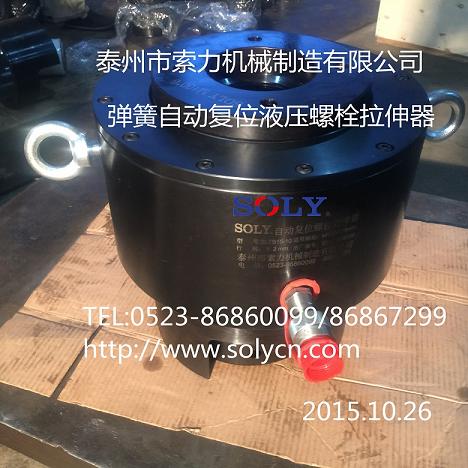

1、弹簧自动回复
2、过行程保护
3、专用性强，一种型号可适用多种规格螺栓
4、拥有其他形式拉伸器的各项优点
| 型号 | 适用螺栓 (mm) |
最大工作压力(MPa) | 尺寸(mm) | 重量Kg | |||||
| A | B | C | D | E | F | ||||
| SLS0 | M20 |
63 |
66.0 | 25.0 | 62.0 | 34.5 | 91.5 | 129.0 | 1.3 |
| M22 | 66.0 | 25.0 | 62.0 | 34.5 | 91.5 | 132.0 | |||
| SLSl | M24 | 85.0 | 31.9 | 68.0 | 43.0 | 123.5 | 167.0 | 3.5 | |
| SLS2 | M24 | 109.0 | 30.0 | 75.0 | 38.0 | 128.6 | 172.0 | 5.5 | |
| M27 | |||||||||
| M30 | 30.2 | 80.0 | 41.0 | 131.6 | 180.0 | ||||
| M33 | 36.9 | 88.0 | 44.0 | 134.6 | 186.0 | ||||
| M36 | 38.3 | 96.0 | 47.0 | 137.6 | 192.0 | ||||
| SLS3 | M33 | 126.0 | 36.9 | 88.0 | 44.0 | 137.0 | 188.0 | 7.0 | |
| M36 | 38.3 | 96.0 | 47.0 | 140，0 | 194.5 | ||||
| M39 | 42.0 | 96.0 | 50.4 | 143.4 | 196.0 | ||||
| M42 | 41.1 | 108.0 | 53.5 | 146.5 | 207.5 | ||||
| SLS4 | M39 | 147.0 | 42.0 | 113.0 | 50.0 | 149.0 | 207.0 | 10.0 | |
| M42 | 45.5 | 3.0 | 53.5 | 152.5 | 213.5 | ||||
| M45 | 52.1 | 118.0 | 57.0 | 156.0 | 220.0 | ||||
| M48 | 51.0 | 4.0 | 60.0 | 159.0 | 226.0 | ||||
| SLS5 | M52 | 174.0 | 52.0 | 32.0 | 63.0 | 163.0 | 235.0 | 15.0 | |
| M56 | 58.0 | 38.0 | 69.5 | 169.0 | 247.0 | ||||
| SLS6 | M56 | 188.0 | 58.0 | 69.5 | 169.4 | 249.0 | 17.0 | ||
| M60 | |||||||||
| M64 | 63.2 | 53.0 | 76.0 | 175.0 | 262.0 | ||||
| M68 | 76.0 | 64.0 | 82.0 | 181.9 | 275.0 | ||||
| SLS7 | M72 | 216.0 | 85.0 | 57.0 | 82.0 | 182.0 | 275.0 | 26.0 | |
| M76 | 80.0 | 80.0 | 89.0 | 189.0 | 288.0 | ||||
| SLS8 | M76 | 247.0 | 80.0 | 80.0 | 89.0 | 192.5 | 291.5 | 29.5 | |
| M80 | |||||||||
| M85 | 95.0 | 190.0 | 95.0 | 198.5 | 303.5 | ||||
| M90 | 102.5 | 205.0 | 101.0 | 204.5 | 316.5 | ||||
| SLS9 | M95 | 273.0 | 93.6 | 200.0 | 107.0 | 21.0 | 330.0 | 38.0 | |
| M100 | 103.0 | 210.0 | 114.0 | 28.0 | 345.0 | ||||
| SLSl0 | M105 | 308.0 | 112.0 | 225.0 | 120.0 | 228.0 | 365.0 | 49.0 | |
| M110 | |||||||||
| M115 | |||||||||
|
|
